Authentication

OAuth2

The booking service API uses OAuth2 as its authentication mechanism, providing a secure way for access control. The diagram below illustrates the flow of the OAuth2 authentication mechanism, showing how the client application interacts with the authorization and resource endpoints to authenticate and access protected resources.

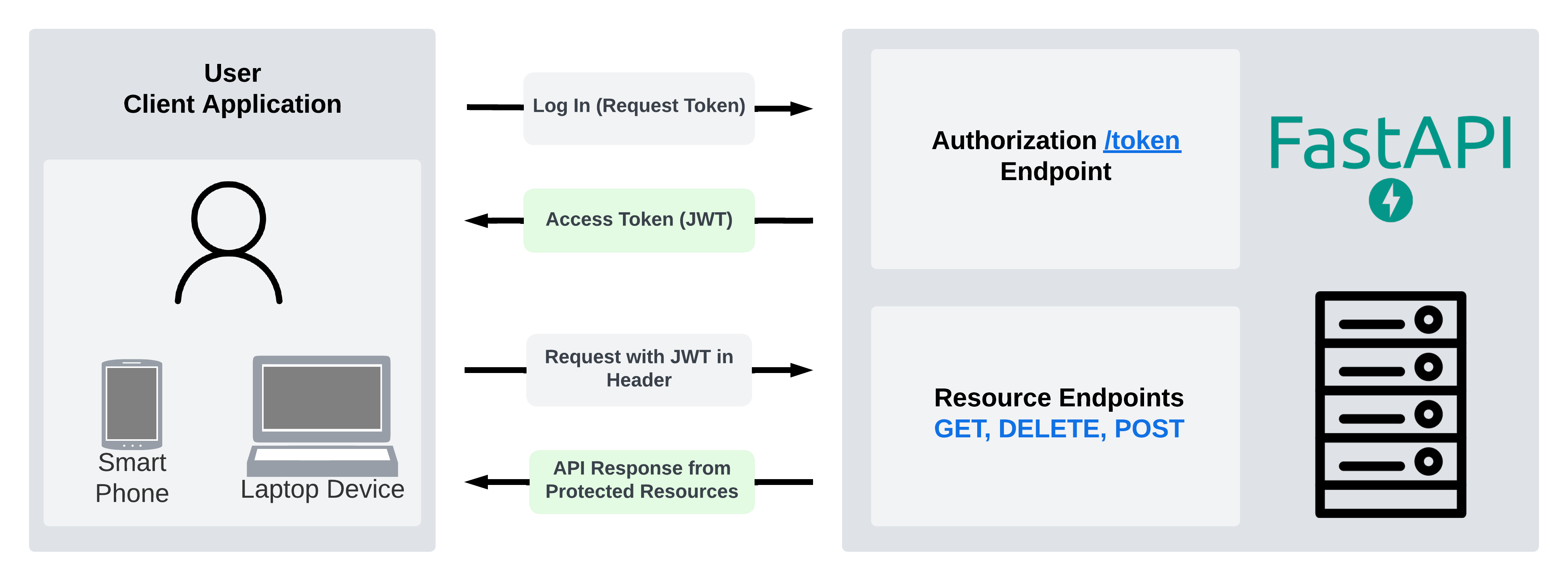

OAuth2 Authentication Flow Diagram

Diagram: Flow of OAuth2 authentication

OAuth2 Flow in the Booking Service API

Requesting a Token

The /token endpoint handles login, where the user sends credentials using the OAuth2PasswordRequestForm. When valid credentials are provided, a JWT token is generated.

@router.post("/token", response_model=Token)
async def login_for_access_token(form_data: OAuth2PasswordRequestForm, database_session: Session = Depends(get_database_session)) -> Token:
    user = authenticate_user(database_session, form_data.username, form_data.password)
    if not user:
        raise HTTPException(status_code=status.HTTP_401_UNAUTHORIZED, detail="Incorrect username or password", headers={"WWW-Authenticate": "Bearer"})

    access_token_expires = timedelta(minutes=ACCESS_TOKEN_EXPIRE_MINUTES)
    access_token = create_access_token(data={"sub": user.username, "role": user.role}, expires_delta=access_token_expires)
    return Token(access_token=access_token, token_type="bearer")

The form data is sent as:

Content-Type: application/x-www-form-urlencoded
username=your_username&password=your_password

The Token model represents the JWT token returned after successful authentication:

class Token(BaseModel):
    access_token: str
    token_type: str

The authenticate_user function verifies the user’s identity by retrieving their details from the database using get_user and validating the password with verify_password.

def authenticate_user(database_session: Session, username: str, password: str) -> Union[UserInDB, bool]:
    user = get_user(database_session, username)
    if not user:
        return False
    if not verify_password(password, user.hashed_password):
        return False
    return user

The create_access_token function then generates the JWT token using the provided user information.

def create_access_token(data: Dict, expires_delta: Optional[timedelta] = None) -> str:
    to_encode = data.copy()
    expire = datetime.now(timezone.utc) + (expires_delta or timedelta(minutes=15))
    to_encode.update({"exp": expire})
    encoded_jwt = jwt.encode(payload=to_encode, key=PRIVATE_KEY, algorithm=ALGORITHM)
    return encoded_jwt

A JWT is an encoded string containing user information and an expiration time, signed using the digital signatures and the specified algorithm. A JWT is composed of three parts separated by dots. For example:

eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c

Header: Encodes metadata such as the signing algorithm (eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9).
Payload: Contains claims like user ID and expiration time (eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ).
Signature: A hashed combination of the header, payload, and the secret key (SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c).

Retrieving User Credentials from the Database

The get_user function accesses the database to retrieve the user record, which is then wrapped in a UserInDB model if the user exists.

def get_user(database_session: Session, username: str) -> Optional[UserInDB]:
    user = database_session.query(User).filter(User.username == username).first()
    if user:
        return UserInDB(username=user.username, hashed_password=user.hashed_password, disabled=user.disabled, role=user.role)
    return None

The UserInDB model represents the user’s details, including the username, hashed password, and role.

class UserDetails(BaseModel):
    username: str
    disabled: Optional[bool] = None
    role: Optional[str] = None

class UserInDB(UserDetails):
    hashed_password: str

The separation of UserDetails and UserInDB models distinguishes between the user details stored in the database (UserInDB) and the user details returned to the client (UserDetails), ensuring the hashed password remains secure.

Validating the Password

The verify_password function compares the plain text password provided during login to the hashed password stored in the database.

pwd_context = CryptContext(schemes=["bcrypt"], deprecated="auto")

def verify_password(plain_password: str, hashed_password: str) -> bool:
    return pwd_context.verify(plain_password, hashed_password)

This function uses the CryptContext class from passlib to validate the password securely.

Retrieving and Validating the Current User

The get_current_user function decodes the JWT token via jwt.decode to extract the user’s information (e.g., username). It validates the token's integrity and checks for expiration.

async def get_current_user(token: Annotated[str, Depends(oauth2_scheme)], database_session: Session = Depends(get_database_session)) -> UserInDB:
    credentials_exception = HTTPException(
        status_code=status.HTTP_401_UNAUTHORIZED,
        detail="Could not validate credentials",
        headers={"WWW-Authenticate": "Bearer"},
    )
    try:
        payload = jwt.decode(jwt=token, key=PUBLIC_KEY, algorithms=[ALGORITHM])
        username: Optional[str] = payload.get("sub")
        if username is None:
            raise credentials_exception
        token_data = TokenData(username=username)
    except ExpiredSignatureError:
        raise HTTPException(
            status_code=status.HTTP_401_UNAUTHORIZED,
            detail="Token has expired",
            headers={"WWW-Authenticate": "Bearer"},
        )
    except InvalidTokenError:
        raise credentials_exception
    except Exception as error:
        raise HTTPException(
            status_code=status.HTTP_500_INTERNAL_SERVER_ERROR,
            detail=f"Unexpected error: {str(error)}",
            headers={"WWW-Authenticate": "Bearer"},
        )
    user = get_user(database_session, username=token_data.username)
    if user is None:
        raise credentials_exception
    return user

The sub key in the payload contains the username, which is used to retrieve the user from the database. If the user is not found, an unauthorized error is raised.

OAuth2PasswordBearer

The oauth2_scheme dependable is an instance of OAuth2PasswordBearer, a dependency provided by FastAPI for OAuth2 authentication. It is used to extract the Bearer token from the request's Authorization header.

oauth2_scheme = OAuth2PasswordBearer(tokenUrl="token")

The parameter tokenUrl="token" specifies the endpoint where the token can be obtained. In this case, the /token endpoint issues the JWT when a user provides valid credentials.
When used in Depends(oauth2_scheme), FastAPI automatically extracts and validates the token passed in the request. The token is then passed to the get_current_user function as a dependency.

The oauth2_scheme ensures that each request to protected endpoints must include a valid token in the Authorization header (e.g., Authorization: Bearer <token>). Without a valid token, access to the endpoint will be denied, and an HTTP 401 Unauthorized error will be returned.

An example of a request to a protected endpoint including the token:

curl -X 'POST' \
  'https://api.example.com/booking/' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer <access_token_placeholder>' \
  -H 'Content-Type: application/json' \
  -d '{
    ...
  }'

The token, once extracted, is validated and decoded within get_current_user to authenticate the user and retrieve user details from the database.

TokenData Model

The TokenData model represents the token data, which includes the username:

class TokenData(BaseModel):
    username: str

Verifying User Activity and Role

get_current_active_user ensures the user is active.
get_current_admin verifies if the user has an admin role.
get_current_user_or_admin checks if the user has either "admin" or "requester" roles.

async def get_current_active_user(current_user: Annotated[UserDetails, Depends(get_current_user)]) -> UserDetails:
    if current_user.disabled:
        raise HTTPException(status_code=400, detail="Inactive user")
    return current_user

async def get_current_admin(current_user: Annotated[UserDetails, Depends(get_current_user)]) -> UserDetails:
    if current_user.role != "admin":
        raise HTTPException(status_code=status.HTTP_403_FORBIDDEN, detail="Not enough permissions")
    return current_user

async def get_current_user_or_admin(current_user: Annotated[UserDetails, Depends(get_current_user)]) -> UserDetails:
    if current_user.role not in ["requester", "admin"]:
        raise HTTPException(status_code=status.HTTP_403_FORBIDDEN, detail="Not enough permissions")
    return current_user

These functions use get_current_user as a dependency to validate the token and additionally check for specific conditions (e.g., if the user is active or has the required permissions).

Accessing Protected Resources

For protected endpoints like GET, POST, and DELETE, these dependencies verify the user’s identity and role before allowing access to the resource.

@router.post(
    "/",
    status_code=201,
    response_model=BookingResponse,
    dependencies=[Depends(get_current_user_or_admin), Depends(get_current_active_user)],
)

@router.get(
    "/",
    status_code=200,
    response_model=BookingResponseList,
    dependencies=[Depends(get_current_admin), Depends(get_current_active_user)],
)

@router.post(
    "/accept/",
    status_code=200,
    response_model=BookingResponse,
    dependencies=[Depends(get_current_admin), Depends(get_current_active_user)],
)

@router.post(
    "/reject/",
    status_code=200,
    response_model=BookingResponse,
    dependencies=[Depends(get_current_admin), Depends(get_current_active_user)],
)

@router.delete(
    "/{id}/",
    status_code=200,
    response_model=BookingResponse,
    dependencies=[Depends(get_current_admin), Depends(get_current_active_user)],
)

Digital Signature Algorithms in the Booking Service API

The booking service API uses EdDSA (Edwards-curve Digital Signature Algorithm) for signing and verifying JWT tokens. This algorithm uses the Ed25519 curve, which offers 128-bit security.

Asymmetric (Public-Key) Cryptography

Asymmetric cryptography involves a pair of keys: a private key used for signing (encoding) and a public key used for verifying (decoding).

Ed25519: This is the algorithm used for signing and verifying tokens.
The private key is securely stored in AWS Secrets Manager and used in create_access_token to sign tokens.
The public key is also stored in AWS Secrets Manager and is used in get_current_user to verify the authenticity of tokens.

Code Implementation Highlights

Setting Up the Environment and Keys

ALGORITHM = "EdDSA"
ENV = os.getenv("ENV")

# In test mode, we don't need to fetch the secrets from aws secrets manager since we mock the authentication
if ENV == "test":
    PUBLIC_KEY, PRIVATE_KEY = "test_public_key", "test_private_key"
# In dev or prod mode, fetch the secrets from aws secrets manager
elif ENV in ["dev", "prod"]:
    sm = boto3.client("secretsmanager")
    # Secret and algorithm settings
    PUBLIC_KEY = b64decode(
        sm.get_secret_value(SecretId=f"public_key_{ENV}")["SecretString"]
    ).decode("utf-8")
    PRIVATE_KEY = b64decode(
        sm.get_secret_value(SecretId=f"private_key_{ENV}")["SecretString"]
    ).decode("utf-8")
    sm.close()
else:
    raise RuntimeError("Unknown environment: Please set 'ENV' to 'test', 'dev', or 'prod'")

The PUBLIC_KEY and PRIVATE_KEY are fetched from AWS Secrets Manager in dev and prod environments. In test mode, the keys are set to dummy values for testing purposes. This is because integration tests involving protected endpoints use mocked versions of the authentication functions; therefore, no real keys are needed.

Signing and Verifying Tokens

Signing (using the private key):

encoded_jwt = jwt.encode(payload=to_encode, key=PRIVATE_KEY, algorithm=ALGORITHM)

Verifying (using the public key):

payload = jwt.decode(jwt=token, key=PUBLIC_KEY, algorithms=[ALGORITHM])

Both operations use EdDSA with the Ed25519 curve to ensure secure signing and verification.

Generating and Storing Ed25519 Keys (Relevant Script Lines)

The scripts/generate_and_store_keys.sh script generates Ed25519 keys, encodes them in base64, and stores them in AWS Secrets Manager. The secrets resources are provisioned in the infrastructure/modules/booking_service/api_keys_creds.tf Terraform configurtation file.

Generating Keys:

openssl genpkey -algorithm Ed25519 -out "$PRIVATE_KEY_FILE"
openssl pkey -in "$PRIVATE_KEY_FILE" -pubout -out "$PUBLIC_KEY_FILE"

Base64 Encoding:

PRIVATE_KEY=$(base64 < "$PRIVATE_KEY_FILE")
PUBLIC_KEY=$(base64 < "$PUBLIC_KEY_FILE")

Storing in AWS Secrets Manager:

aws secretsmanager put-secret-value --secret-id "private_key_${ENV}" --secret-string "$PRIVATE_KEY" --profile "$AWS_PROFILE"
aws secretsmanager put-secret-value --secret-id "public_key_${ENV}" --secret-string "$PUBLIC_KEY" --profile "$AWS_PROFILE"

These lines generate, encode, and store Ed25519 keys in AWS Secrets Manager so they can be securely accessed by the booking service API at runtime.
